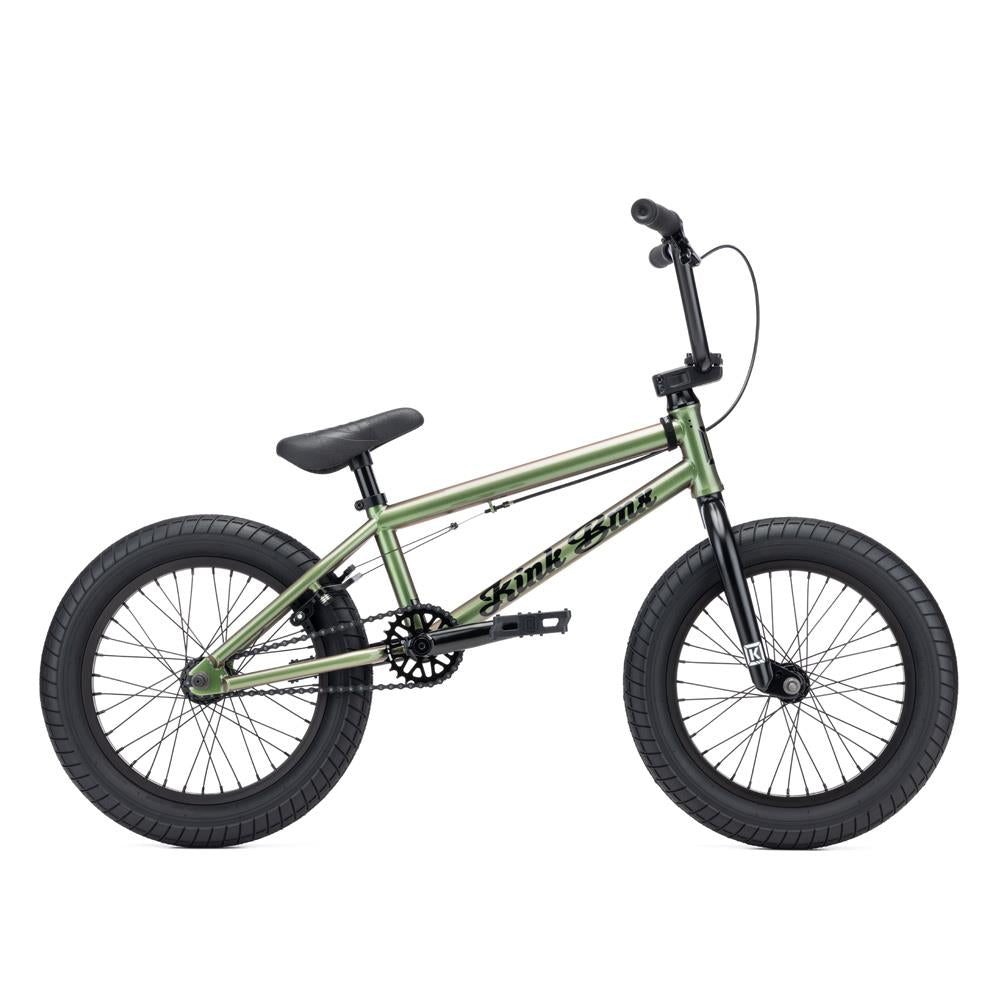

Kink Carve 16" BMX Bike 2026
Kink Carve 16" BMX Bike 2026
-
The Kink Carve 16” ensures riders of every age can not only find a bike that fits them but can also hold up to some real BMX riding.
Kids are getting serious about BMX at younger and younger ages, and we love it. Properly proportioned geometry and components create a modern, yet comfortable ride, suited for the rider who isn’t ready for the bump up to a larger 18” bike yet.
Made for all types of riding, the Kink Carve comes in a really cool gloss Patina Green colorway.
-
Seen this cheaper elsewhere? We price match any legitimate competitor! For a price match to be accepted, the item has to be identical and be in stock and available for purchase at our competitor. We will notify you by email of the decision when reviewed within 24hours but usually much sooner
-
- Free UK Shipping On Orders Over £99.99*
- Complete Tracking On All Orders
- 90 Day Returns Policy
- Free Gifts With All orders
- *Excludes bulky items
Product Specs
- FRAME MATERIAL: 100% Hi-Ten Steel
- WHEEL SIZE: 16"
- TOP TUBE LENGTH: 16.5"
- CHAIN STAY LENGTH: 11.25"
- HEADTUBE ANGLE: 74.5°
- SEAT TUBE ANGLE: 71°
- FORKS: Chromoly Steerer Tube and Tapered Hi-Ten Legs
-
BARS:
- MATERIAL: Hi-Ten
- TYPE: 2-Piece
- RISE: 7" Rise
- WIDTH: - STEM: Alloy Top Load
- HEADSET: Integrated
- BRAKE MOUNTS: Welded Mount
- BRAKES: U-Brake
- FRONT HUB: 10mm Loose Ball
- FRONT RIM: Single Wall
- REAR HUB: 14mm Semi-Sealed Cassette
- REAR RIM: Single Wall
- TYRES: 2.4"
- SPROCKET: 25t
-
CRANKS:
- MATERIAL: Chromoly
- TYPE: 3-Piece
- ARM LENGTH: 140mm - BB: 19mm Mid
- PEDALS: Nylon/Fiberglass
- SEAT: Combo Seat/Post
- GEARING: 25-Sep
- WEIGHT: 22.1lbs (10kg)
Product Highlights
- Smaller 16" Wheels - The Perfect fit for for 5-8 years olds (3ft - 3ft 6 / 90cm - 105cm)
- Specifically designed for the smaller rider, just starting out in BMX
- Strong Hi-Ten steel construction
- Strong and durable crankset
- Semi sealed rear hub
NEED SOME HELP CHOOSING A BMX BIKE?
We have compiled a complete BMX buyers guide to help you through the process! Keep reading to find out more about your perfect BMX bike. Here at SourceBMX we are all riders, so we can offer advice that only 100% rider-owned BMX shops can - just ask.
Click here to view all BMX Bikes
BMX BIKE SIZE GUIDE
BMX bikes are measured in two ways: the size of the wheel (20” is the standard BMX wheel size), and the length of the frame which is gauged by the top tube measurement. We have also simplified for you into XS, Small, Medium, etc.Here is a guide to what size you should be looking for - note that there is some overlap in sizes, as personal preference also comes into the equation!
| Rider Height (in) | Rider Height (cm ) | Wheel Size (in) | Top Tube Length (in) |
|---|---|---|---|
| 2FT - 3FT | 60 - 90cm | 12" | 11.5" - 13" |
| 2'8" - 3'4" | 80 - 100 cm | 14" | 2.8" - 15" |
| 3FT - 3'8" | 90 - 110cm | 16" | 14.5" - 17" |
| 3'6" - 4'6" | 105 - 135cm | 18" | 17" - 18.5" |
| 4'6" - 5'1" (XS) |
135 - 155cm | 20" | 18" - 20" |
| 4'10" - 5'4" | 147 - 162cm | 20" | 20" - 20.25" (XS - S) |
| 5'2"- 5'8" | 157 - 173cm | 20" | 20" - 20.5" (S - M) |
| 5'6" - 6FT | 165 - 185cm | 20" | 20.25" - 21" (M - L) |
| 6FT + | 180cm + | 20" | 20.75" + (L - XL) |
