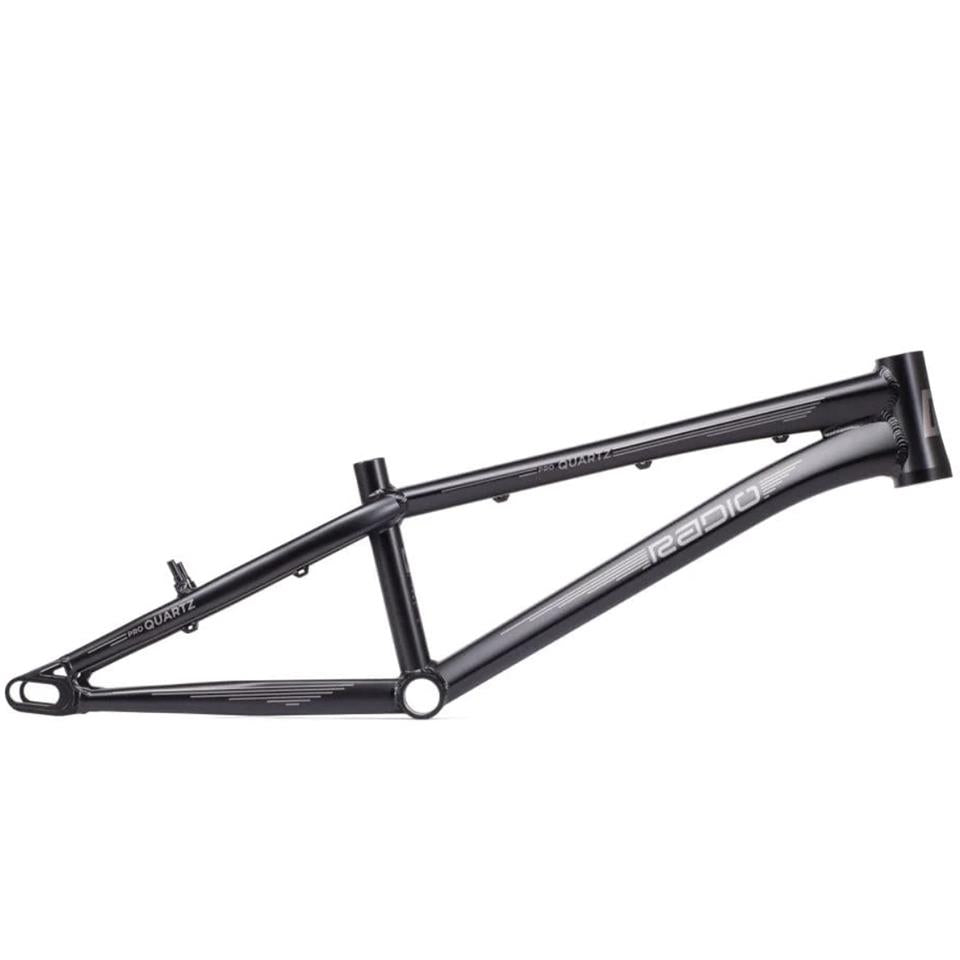

Radio Quartz Pro XL Race Frame
-
The Quartz Frame is a 2 time World Championship winning super light alloy race frame. Taking the track proven. Helium Frame as a base, Radio upgraded the frame to use their new Paradigm 6061-T6 hydroformed superior tubing to shed a considerable amount of weight compared to the Helium Frame. The Quartz also uses a forged dropout design which allowes it to be fully disc brake compatible when used with the Helium disc brake mount.
Product Specs
- MATERIAL: Hydroformed 6061 alloy, Paradigm tubing
- TOP TUBE LENGTH: 21.25”
- HEAD TUBE ANGLE: 74°
- SEAT TUBE ANGLE: 71°
- CHAIN STAY LENGTH: 14.5”
- BB HEIGHT: 11.6"
- WHEEL SIZE: 20"
- STANDOVER HEIGHT: TBC
- DROPOUT SIZE: 20mm
- HEADSET TYPE: Integrated tapered 1-1/8” – 1.5”
- BB TYPE: Euro
- SEAT TUBE DIAMETER: 27.2mm
- BRAKE MOUNTS: V-Brake
- WEIGHT: TBC
Product Highlights
- BMX Racing Specific Geometry
- Race Specific Frame
- Strong and lightweight
- Built in chain tensioners
- Disc brake mounts
