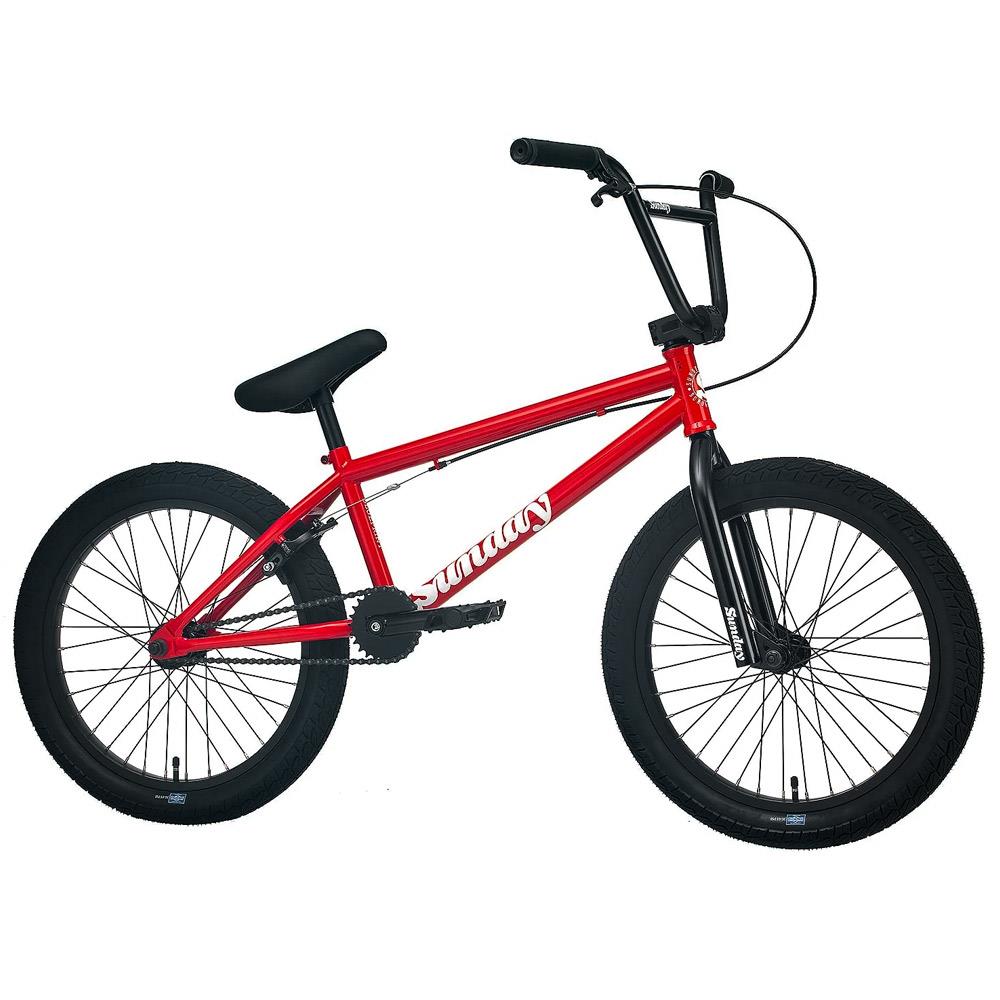

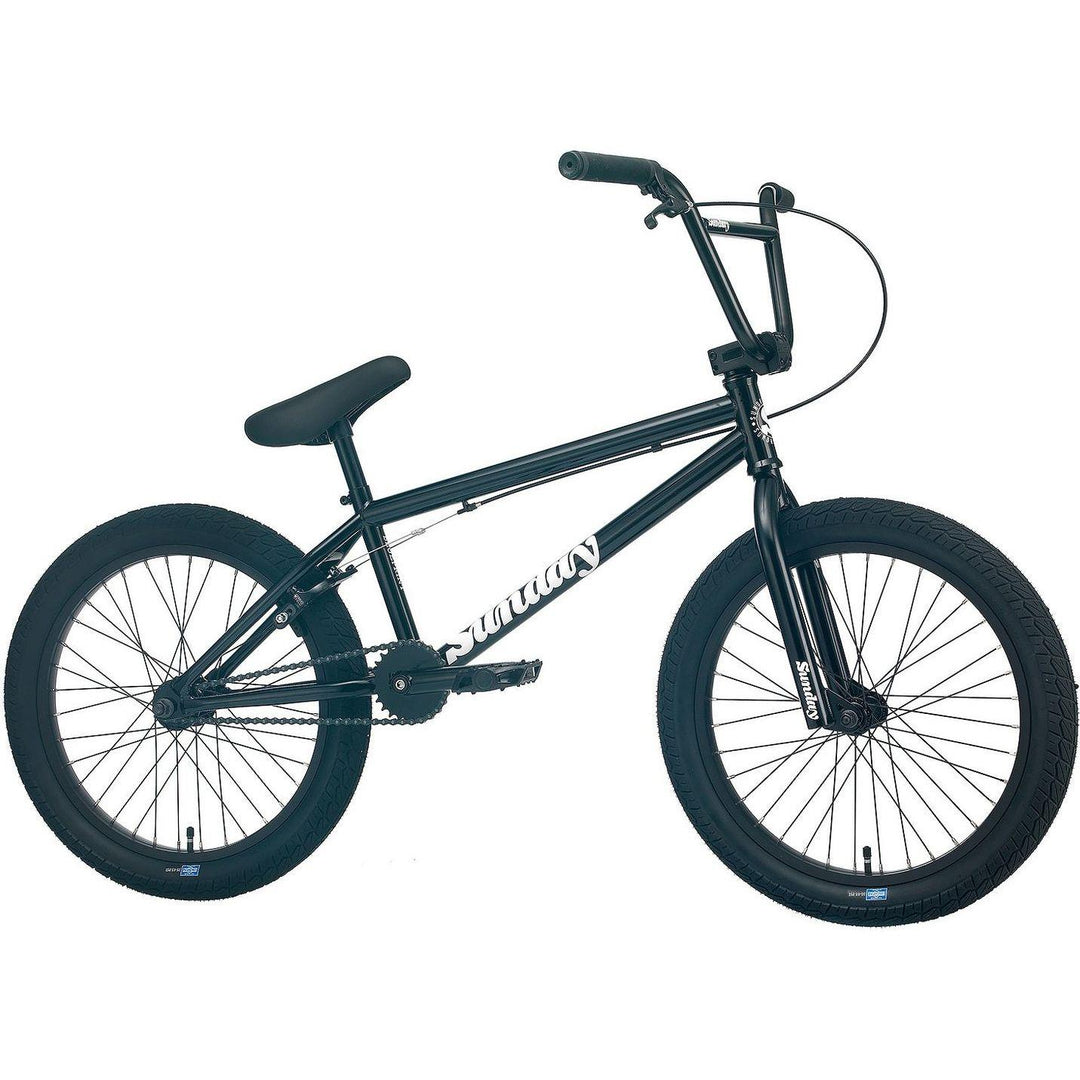

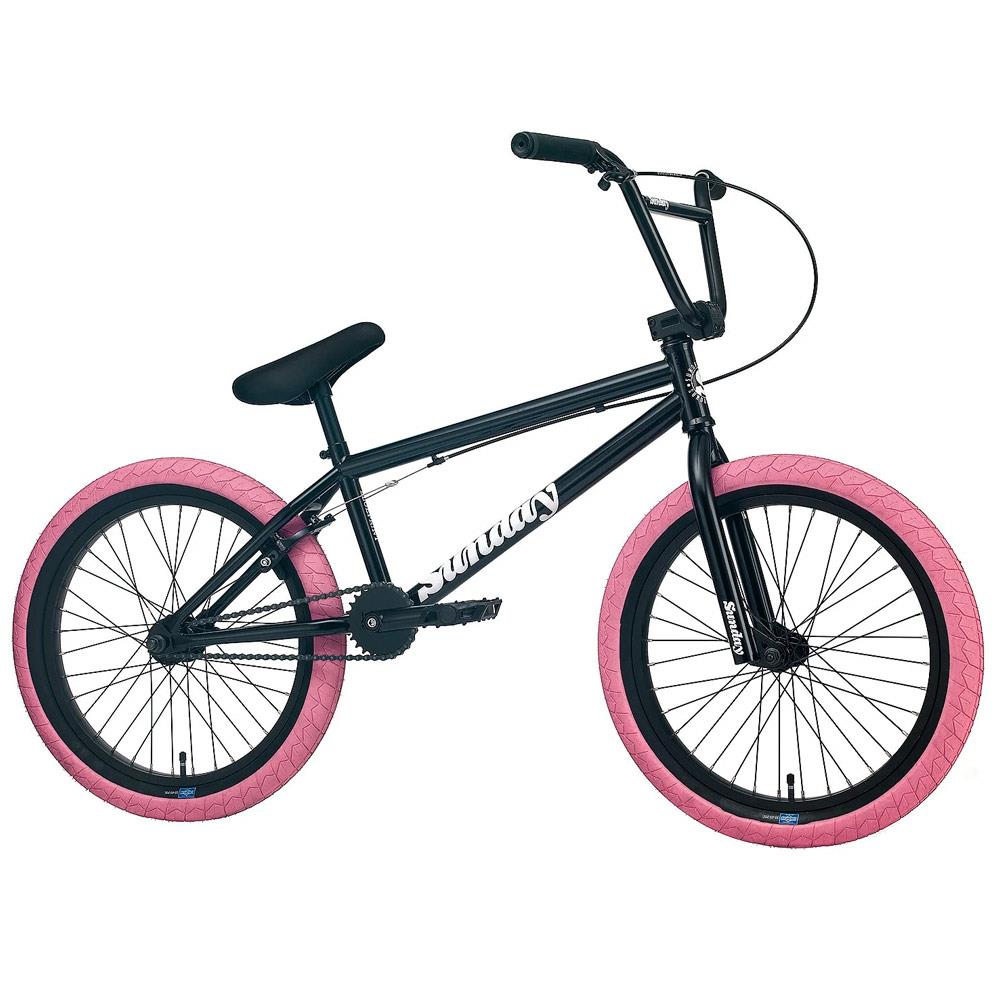

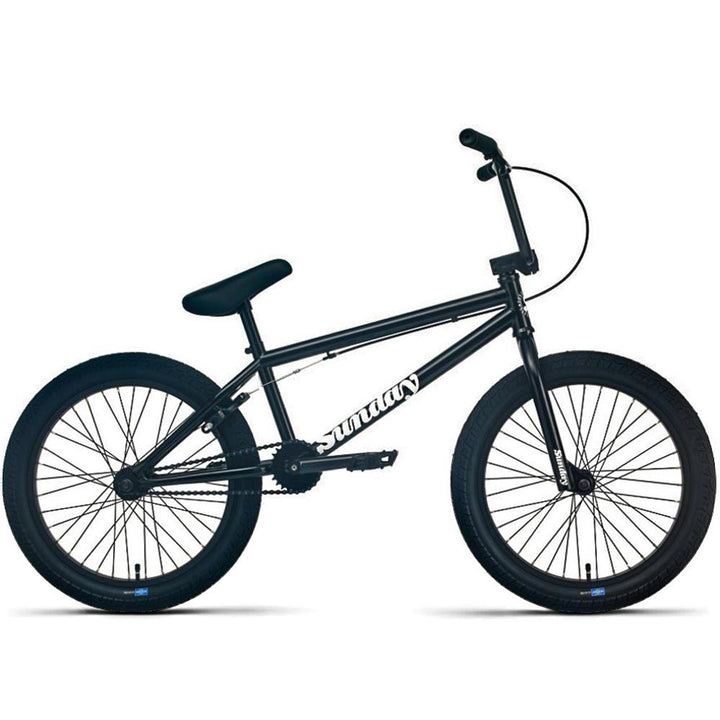

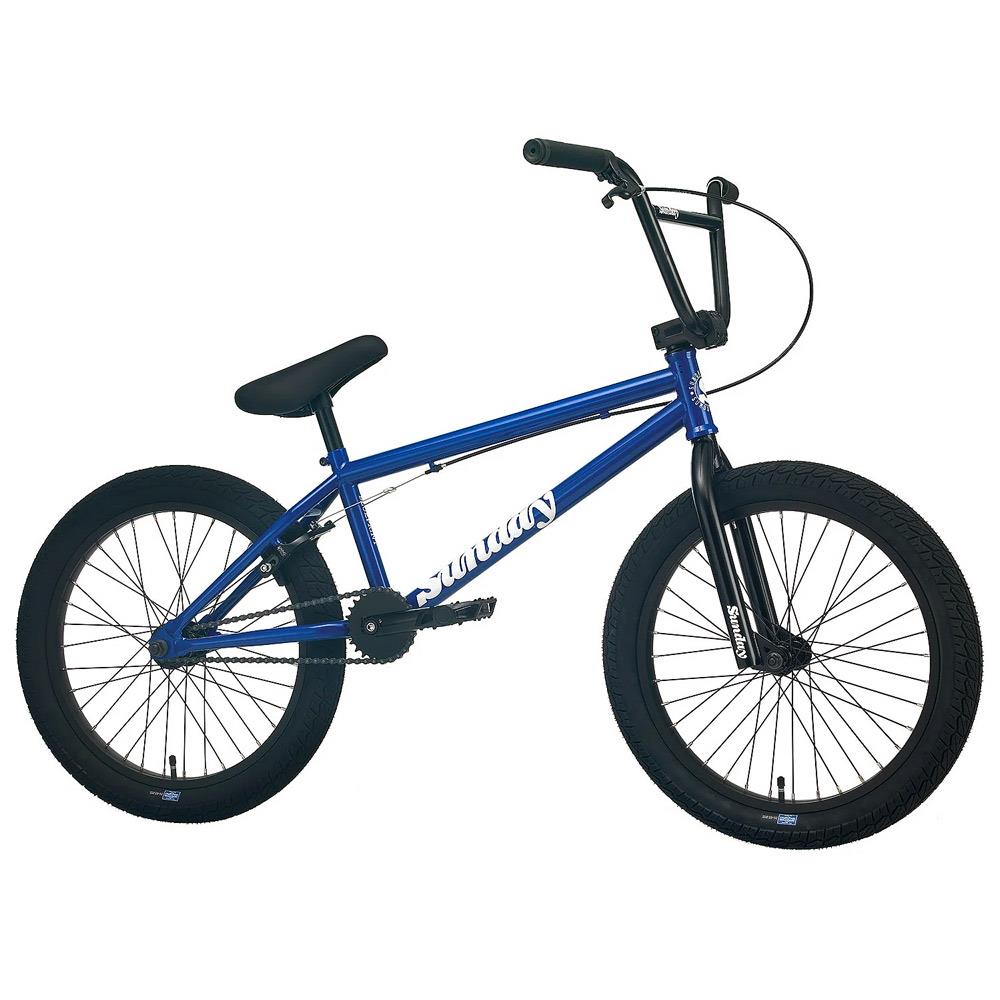

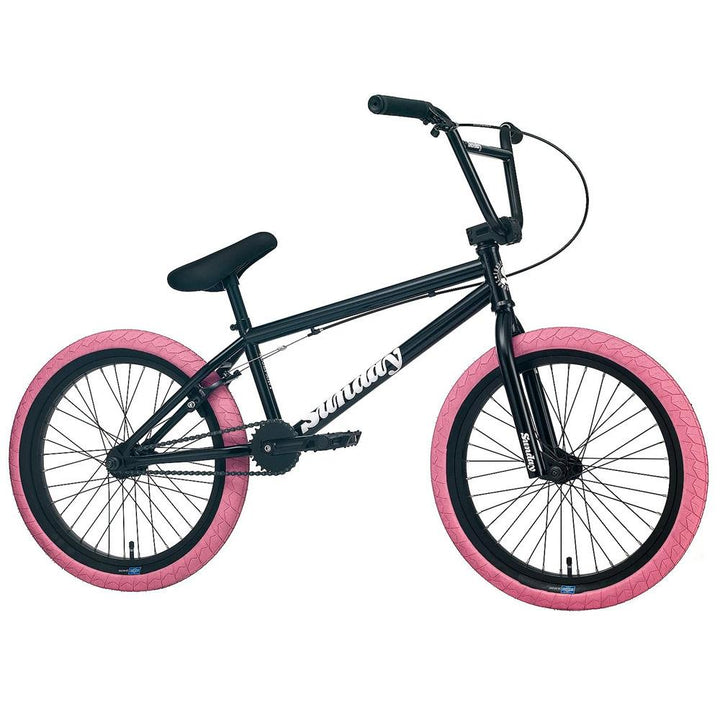

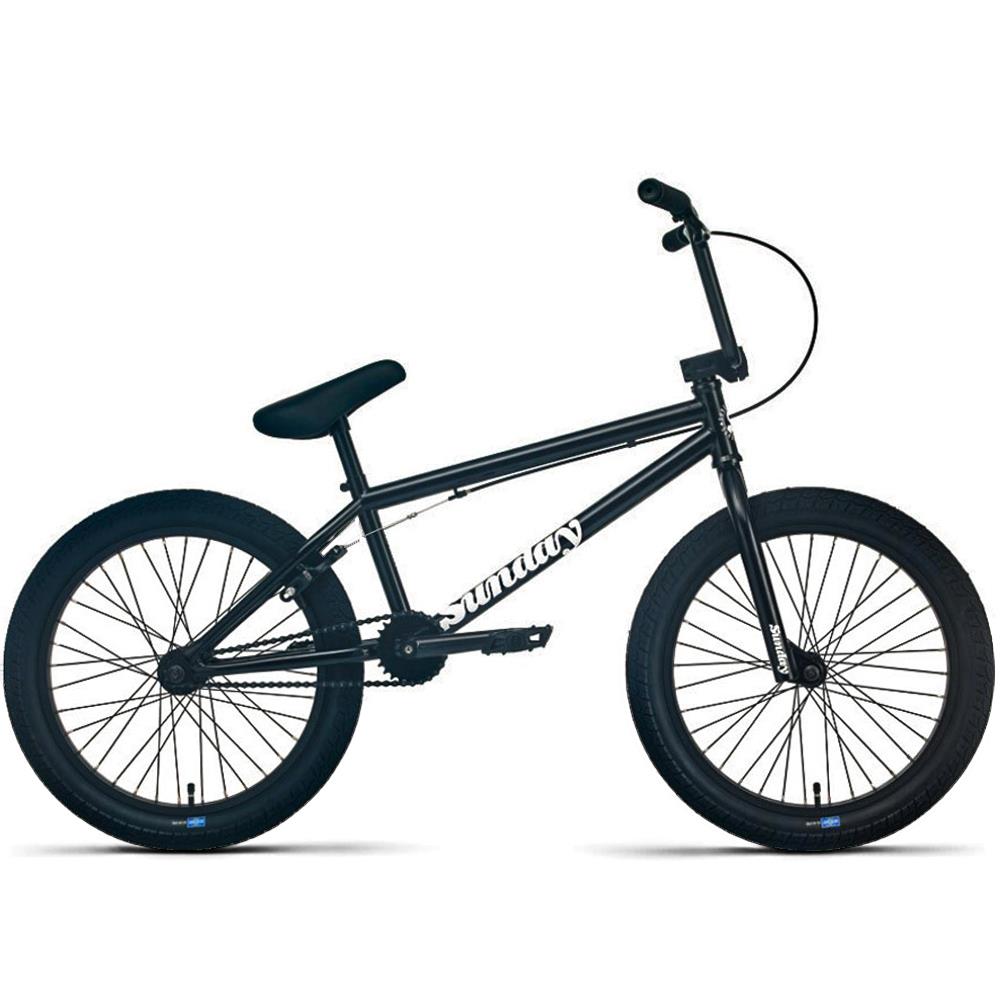

Sunday Blueprint BMX Bike
Sunday Blueprint BMX Bike
-
Sunday's Blueprint BMX is built around a pro-level geometry and a quality parts package to help new riders progress faster.
Hi-ten steel construction throughout the frame, fork and bars keeps the Blueprint stroung and durable as you progress and learn more and more tricks. The frame features an integrated head tube for greater durability, ease of assembly and pro style points.
The Blueprint is loaded with hassle free parts like Odyssey Springfield brakes, a Sunday Freeze Stem and current 2.4" tyres all there to keep you focused on riding and not worrying about your setup.
-
Seen this cheaper elsewhere? We price match any legitimate competitor! For a price match to be accepted, the item has to be identical and be in stock and available for purchase at our competitor. We will notify you by email of the decision when reviewed within 24hours but usually much sooner
-
- Free UK Shipping On Orders Over £99.99*
- Complete Tracking On All Orders
- 90 Day Returns Policy
- Free Gifts With All orders
- *Excludes bulky items
Product Specs
- FRAME MATERIAL: 100% Hi-Ten Steel
- WHEEL SIZE: 20"
- TOP TUBE LENGTH: 20"
- CHAIN STAY LENGTH: 13.2" - 13.5"
- HEADTUBE ANGLE: 75°
- SEAT TUBE ANGLE: 71°
- FORKS: 100% Hi-Ten Steel
-
BARS:
- MATERIAL: Hi-Ten
- TYPE: 2-Piece
- RISE: 9" Rise
- WIDTH: 28.5" Width - STEM: Alloy Front Load
- HEADSET: Integrated
- BRAKE MOUNTS: Welded U-Brake
- BRAKES: U-Brake
- FRONT HUB: 10mm Loose Ball
- FRONT RIM: Single Wall
- REAR HUB: Loose Ball Cassette
- REAR RIM: Single Wall
- TYRES: 2.4"
- SPROCKET: 25t
-
CRANKS:
- MATERIAL: Chromoly
- TYPE: 3-Piece
- ARM LENGTH: 160mm - BB: USA Loose Ball
- PEDALS: Plastic
- SEAT: Combo Seat/Post
- GEARING: 25/9
- WEIGHT: 26lbs (11.8kg)
Product Highlights
- Full size Bike with a shorter Top Tube and geometry to suit riders who are 4ft - 5ft 4"/120cm -160cm
- A great all rounder suitable for any type of riding
- Strong Hi-ten steel construction
- A great all rounder, suitable for any type of riding
- Great spec for a BMX in this price bracket
NEED SOME HELP CHOOSING A BMX BIKE?
We have compiled a complete BMX buyers guide to help you through the process! Keep reading to find out more about your perfect BMX bike. Here at SourceBMX we are all riders, so we can offer advice that only 100% rider-owned BMX shops can - just ask.
Click here to view all BMX Bikes
BMX BIKE SIZE GUIDE
BMX bikes are measured in two ways: the size of the wheel (20” is the standard BMX wheel size), and the length of the frame which is gauged by the top tube measurement. We have also simplified for you into XS, Small, Medium, etc.Here is a guide to what size you should be looking for - note that there is some overlap in sizes, as personal preference also comes into the equation!
| Rider Height (in) | Rider Height (cm ) | Wheel Size (in) | Top Tube Length (in) |
|---|---|---|---|
| 2FT - 3FT | 60 - 90cm | 12" | 11.5" - 13" |
| 2'8" - 3'4" | 80 - 100 cm | 14" | 2.8" - 15" |
| 3FT - 3'8" | 90 - 110cm | 16" | 14.5" - 17" |
| 3'6" - 4'6" | 105 - 135cm | 18" | 17" - 18.5" |
| 4'6" - 5'1" (XS) |
135 - 155cm | 20" | 18" - 20" |
| 4'10" - 5'4" | 147 - 162cm | 20" | 20" - 20.25" (XS - S) |
| 5'2"- 5'8" | 157 - 173cm | 20" | 20" - 20.5" (S - M) |
| 5'6" - 6FT | 165 - 185cm | 20" | 20.25" - 21" (M - L) |
| 6FT + | 180cm + | 20" | 20.75" + (L - XL) |
