Sunday Soundwave V3 Frame

£499.99 Out of Stock |

Sunday Soundwave V3 Frame

Check all Stock availability
£499.99 Out of Stock
  • Earn Source Rewards points with every orderEarn 5000 Source Rewards points
Add to Wishlist
Order In 1 Hour 53 Minutes For Express Shipping Options!
Pay securely, your way
  • Incredibly strong, lightweight and high-tech.

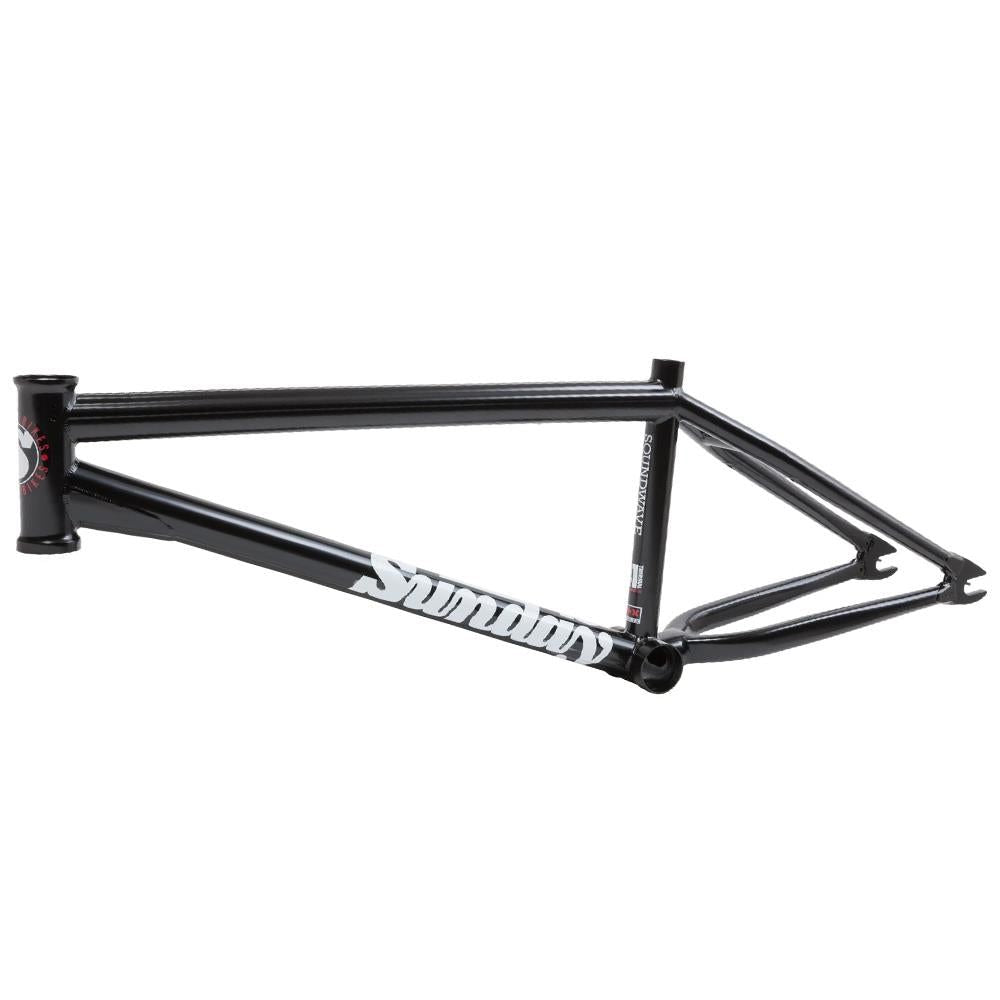

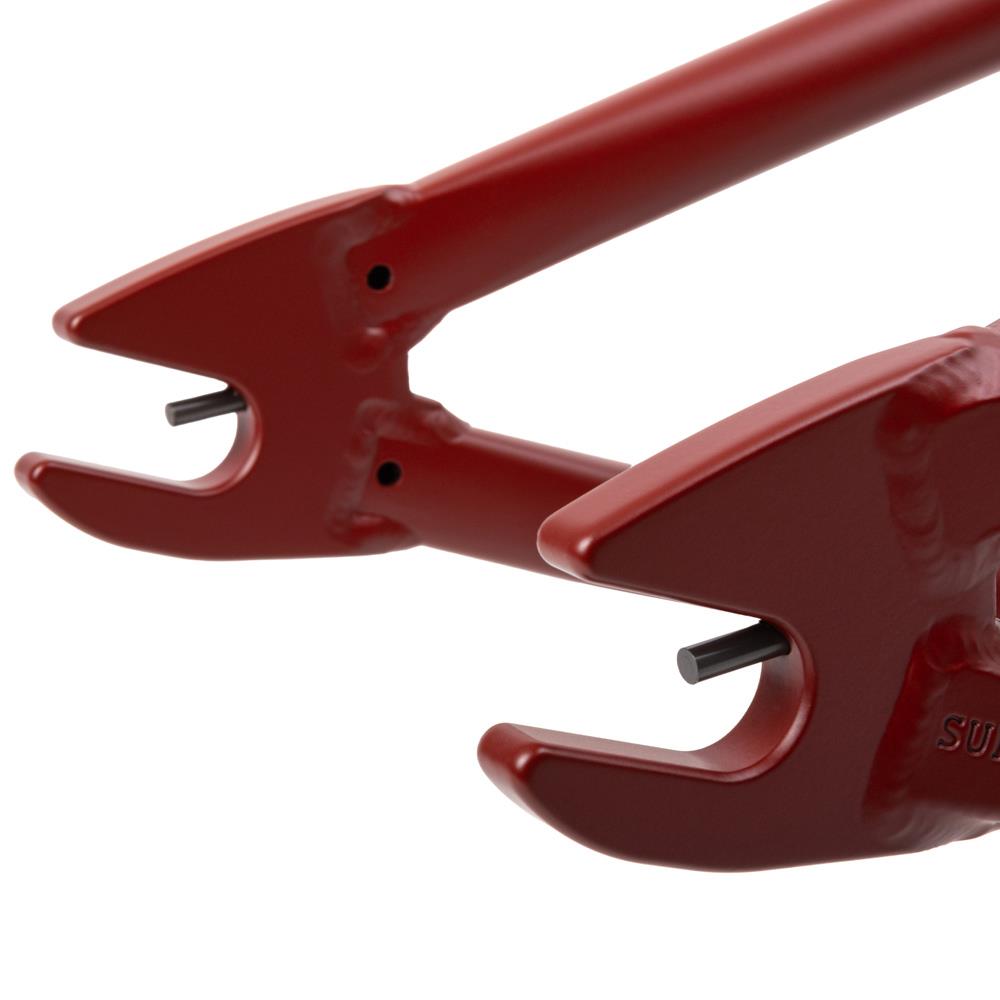

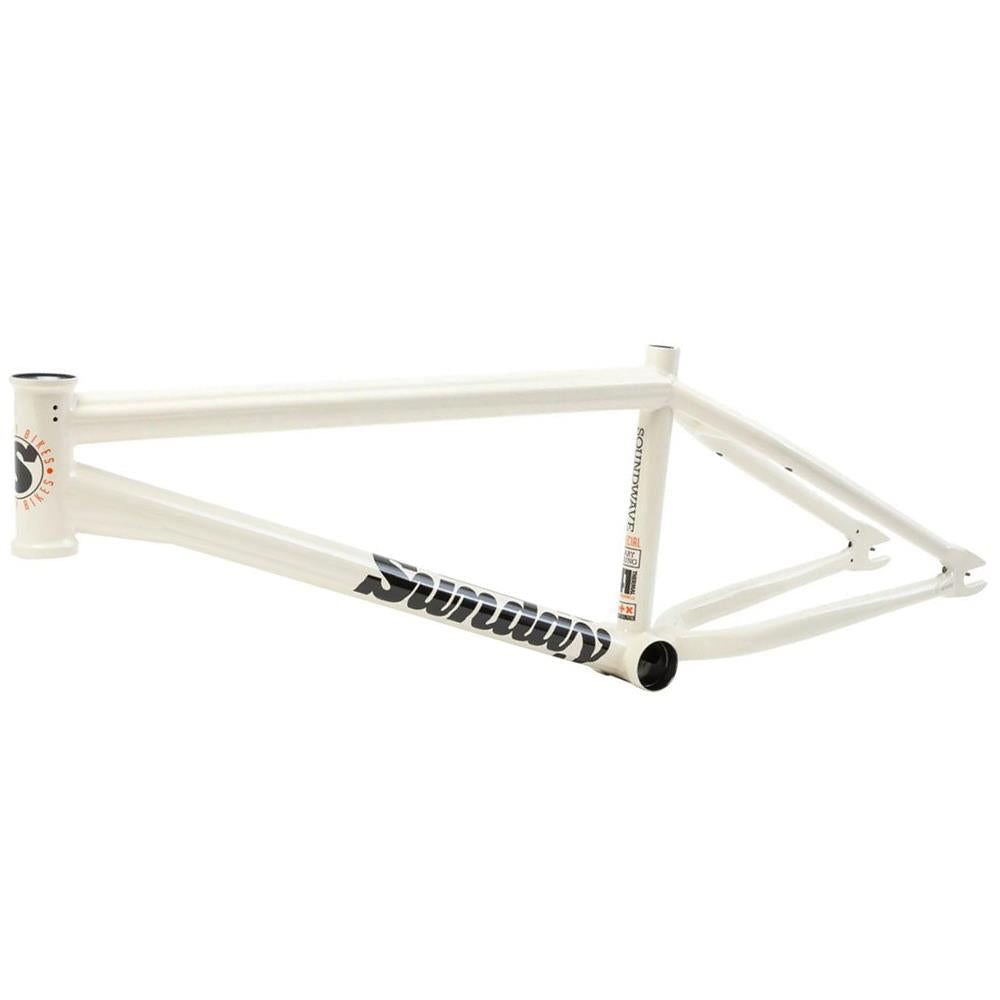

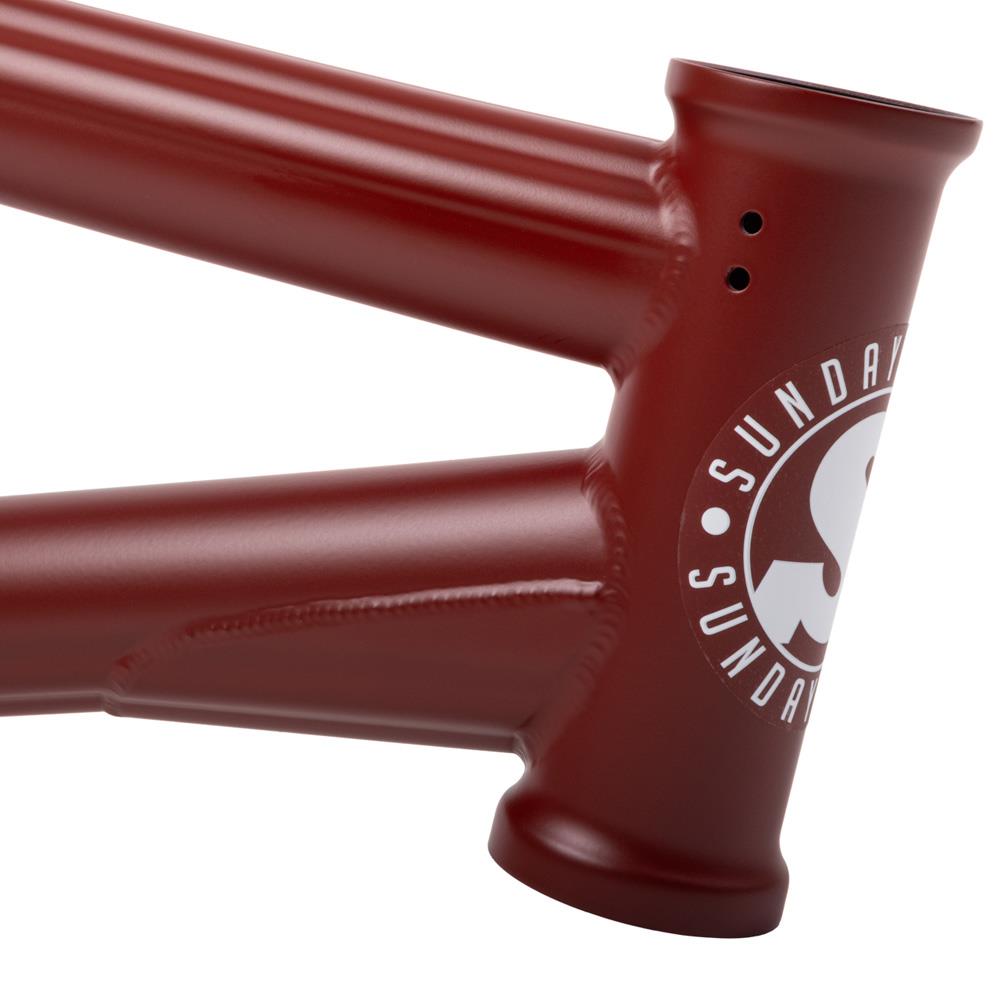

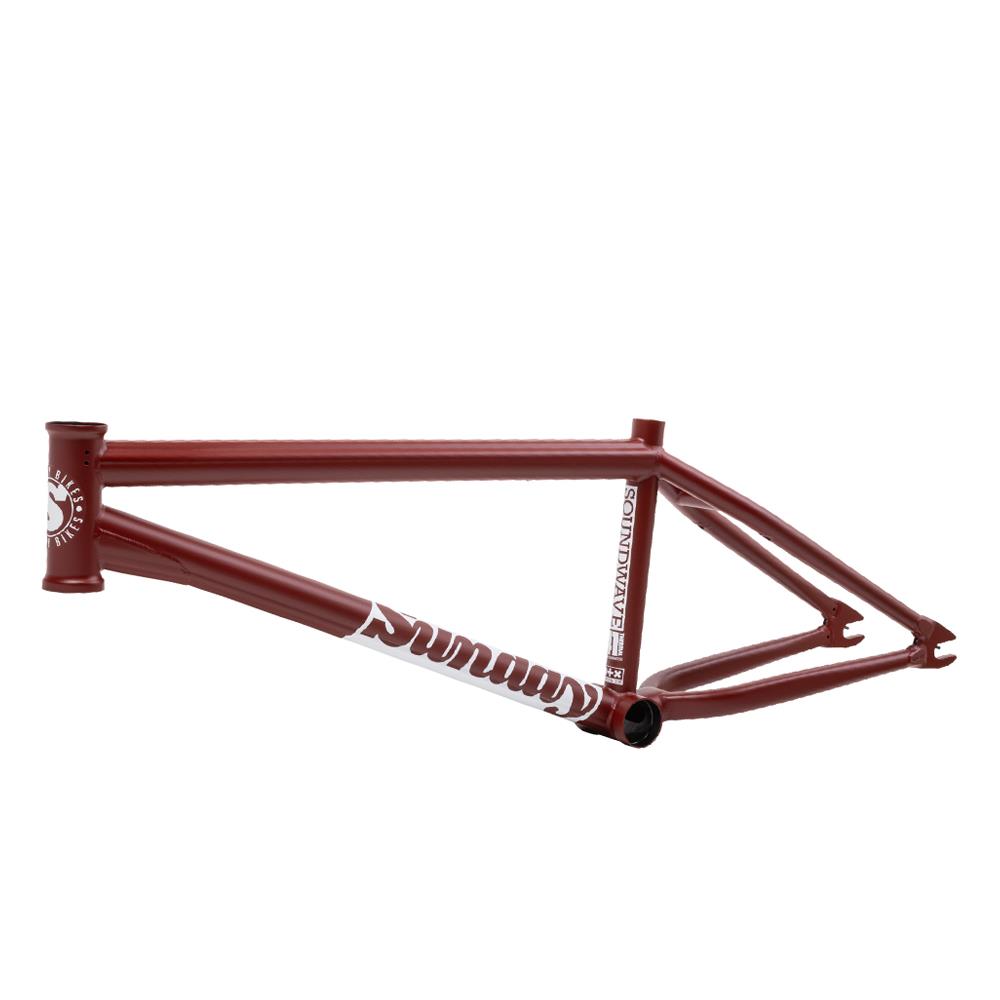

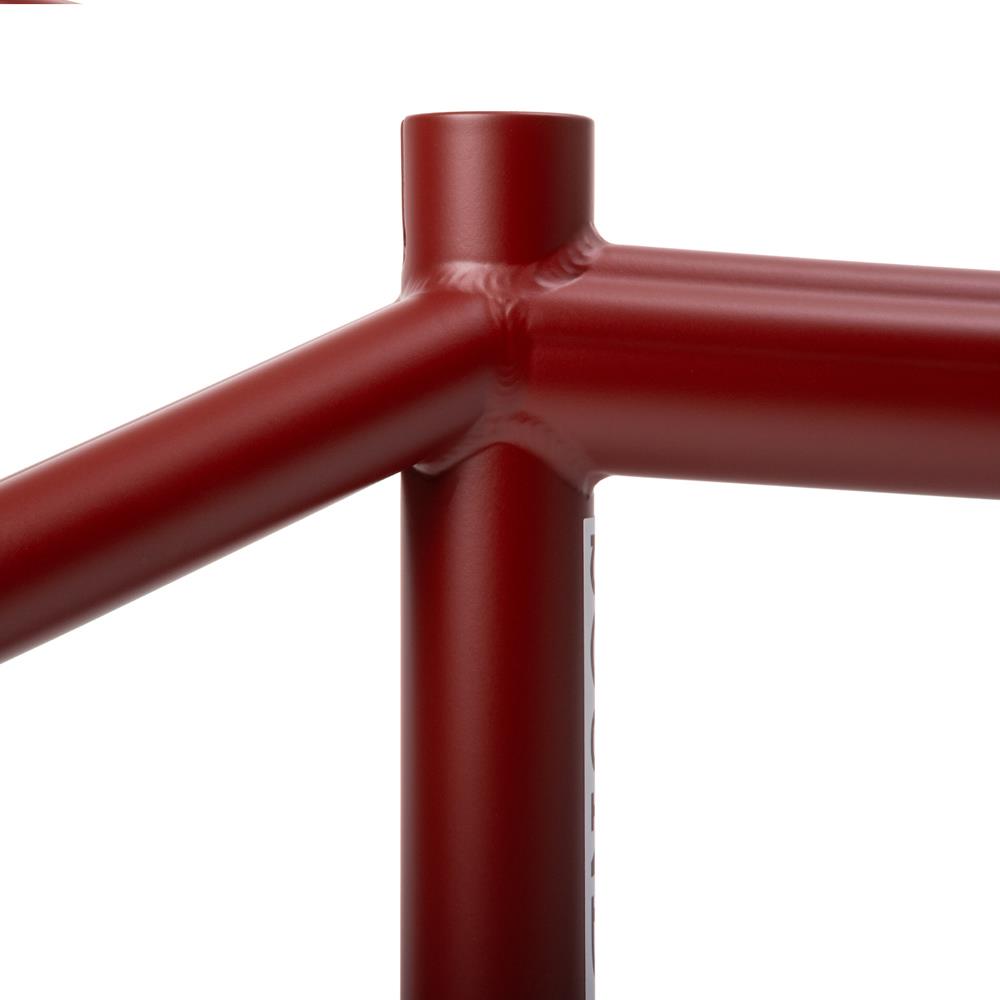

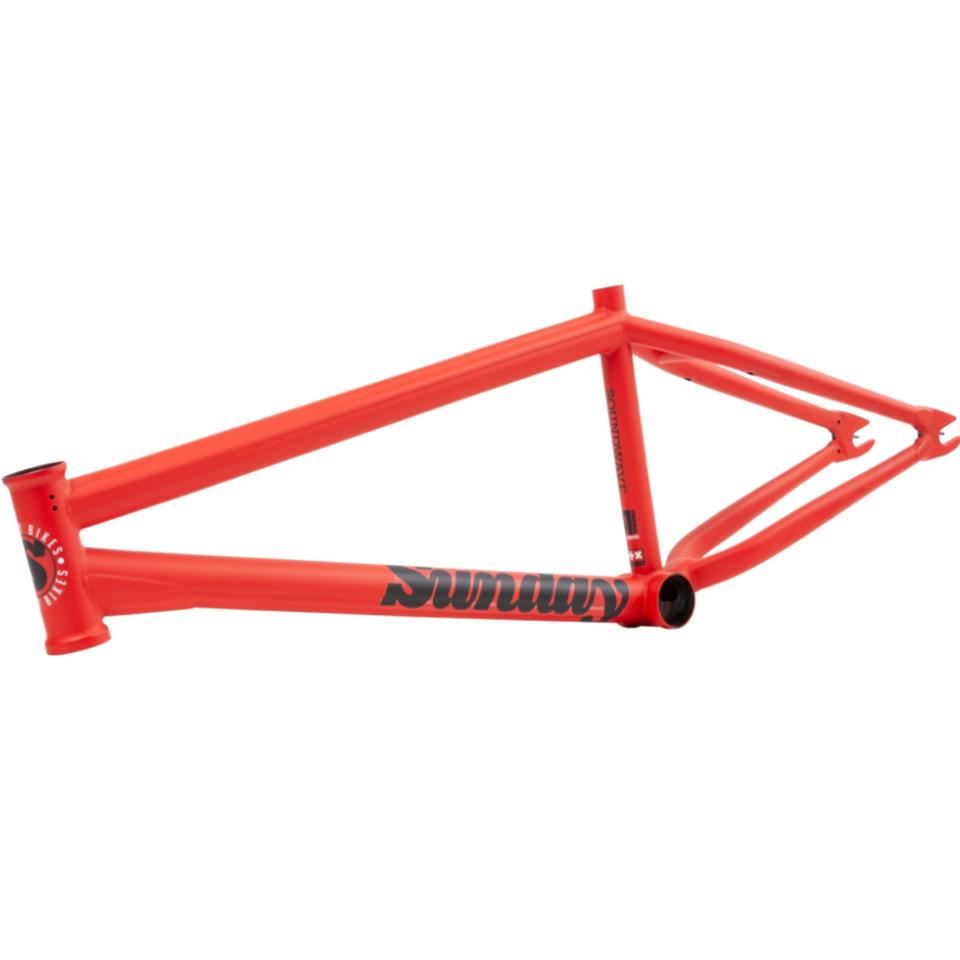

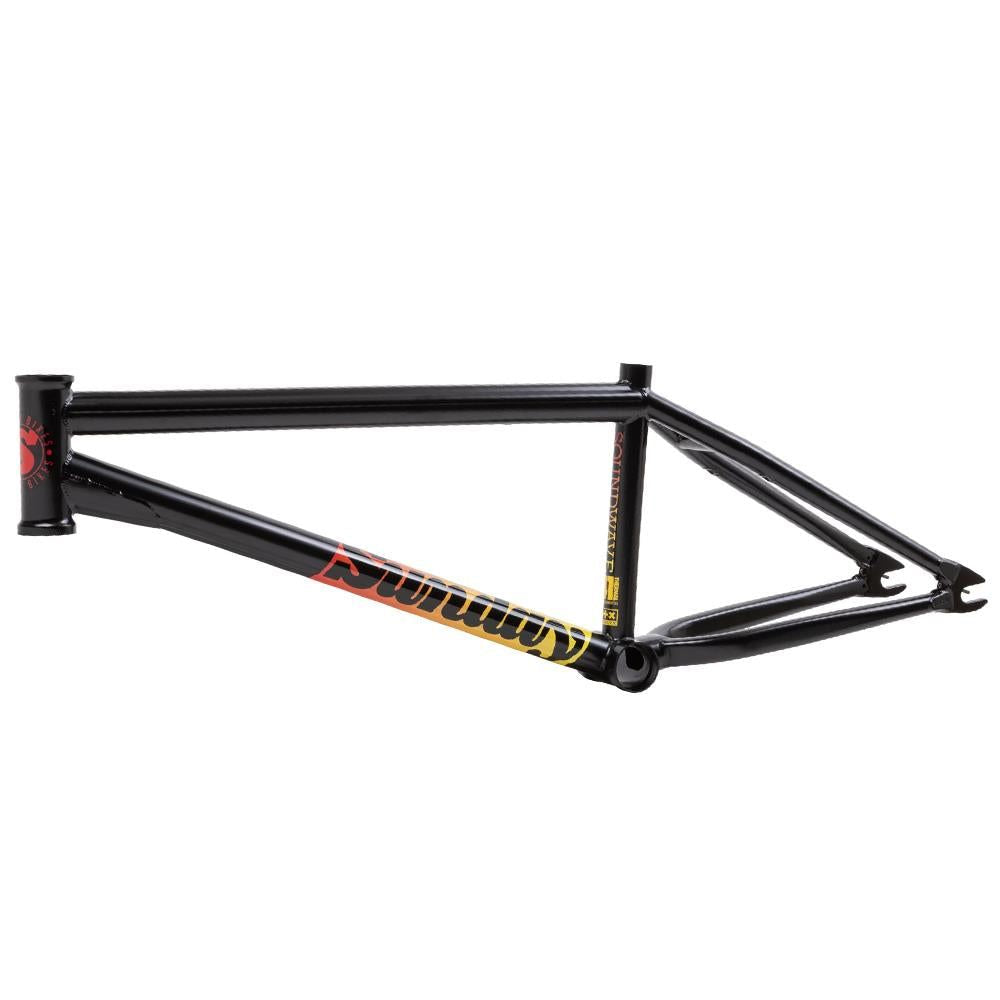

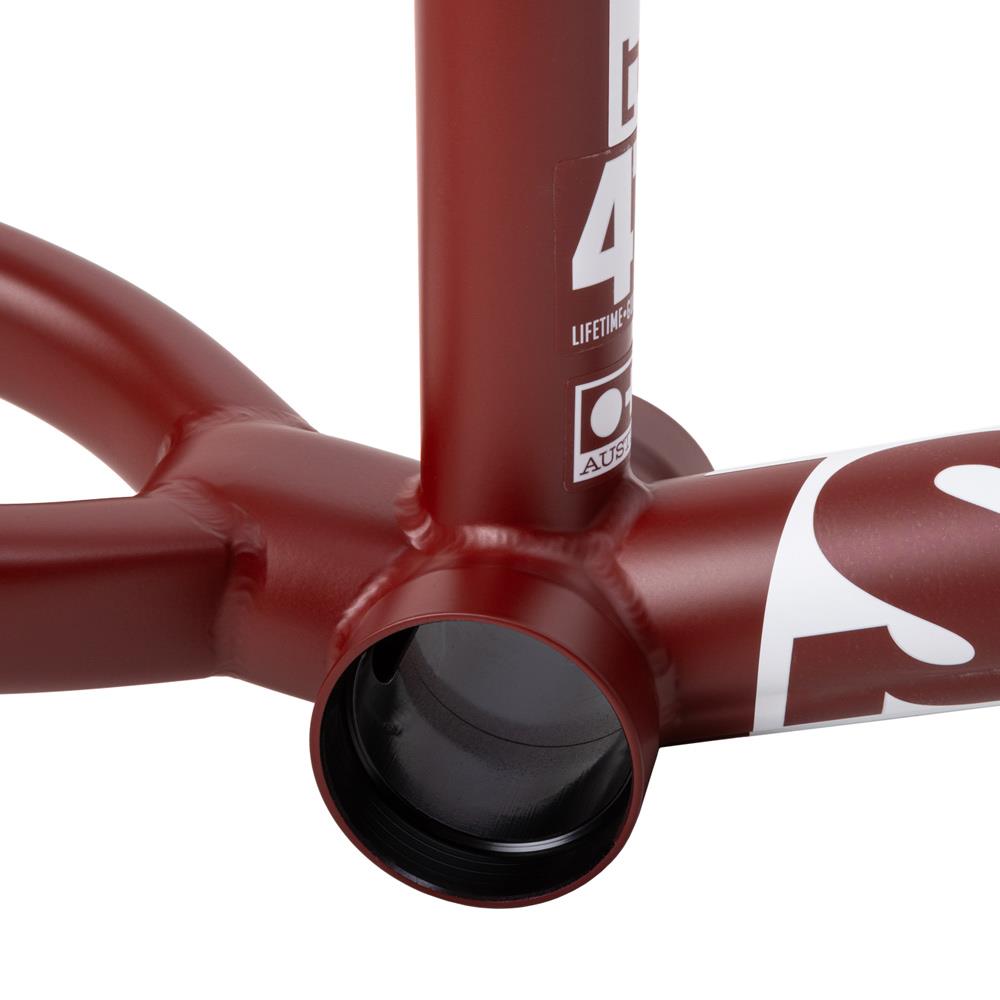

    The 3rd version of the Sunday Soundwave frame (v3), is the most advanced frame design that Sunday offers. It's loaded with features like proven hollow dropouts, integrated chain tensioners, Wave down tube and top tube, cable channel guide, angled removable brake mounts, "Director" style wishbone, post-weld machining of the BB & HT, and full 41-Thermal post weld heat-treating throughout.

    The v3 has a shorter chainstay than its predecessor (now 13.2"-13.5") and a taller headtube (now 5").

    The Soundwave V3 is backed by the unparalleled 41-Thermal Lifetime Warranty against bending, cracking and breaking. And it is the go-to frame for riders like Gary Young, Chris Childs, and Brett Silva.

Product Specs
  1. MATERIAL: Full 4130 Chromoly
  2. HEAD TUBE ANGLE: 75°
  3. SEAT TUBE ANGLE: 71°
  4. CHAIN STAY LENGTH: 13.5"
  5. BB HEIGHT: 11.5"
  6. WHEEL SIZE: 20"
  7. STANDOVER HEIGHT: 9"
  8. DROPOUT SIZE: 14mm
  9. HEADSET TYPE: Integrated
  10. BB TYPE: Mid
  11. BRAKE MOUNTS: Removable
  12. GYRO TABS: Removable
  13. WEIGHT: 4.87lbs

Product Highlights
  • Neutral Geometry for responsiveness and stability
  • Great all round frame for all types of riding
  • High-quality Chromoly construction
  • Built in chain tensioners
  • Strong butted tubing

Free UK Shipping Over £99.99*

90-Day Returns & Exchanges

Price Match Promise

Customers Rate Us Excellent!

More Like This

UNDERSTANDING FRAME GEOMETRY

BMX frame geometry can look daunting, but thanks to our handy guide below you will have it figured out in no time. Remember, we're all BMXers here so if you have any questions just ask.

Keep reading to find your perfect frame, or click below to watch the buyers guide video.

FRAME SIZE CHART

Frame sizing is very much a personal preference: some riders like them longer, others shorter. Here's a rough guide - if you have any questions remember we are here to help!

3ft - 3ft 8" - best suited to a 16" BMX bike
3ft 8" - 4ft - best suited an 18" BMX bike
4ft - 5ft - 18" to 20" top tube
5ft - 5ft 4" - 20" to 20.25" top tube
5ft 4" - 5ft 8" - 20.25" to 21" top tube
5ft 8" - 6ft - 21" to 21.25" top tube
6ft plus - 21" top tube or longer
Rider Height (in) Rider Height (cm) Top Tube Length
5' 152 20"
5'3" 160 20.5"
5'6" 167 20.75"
5'9" 175 21"
6' 182 21.25"
6'6" 200  21.5"

FRAME GEOMETRY

Frame geometry can take a bit of understanding - but here at SourceBMX we are here to help! The first thing to understand is that BMX frame sizing is best measured by the length of the top tube - shown here as TT. Keep reading on to understand how the angles change how your frame will feel!
